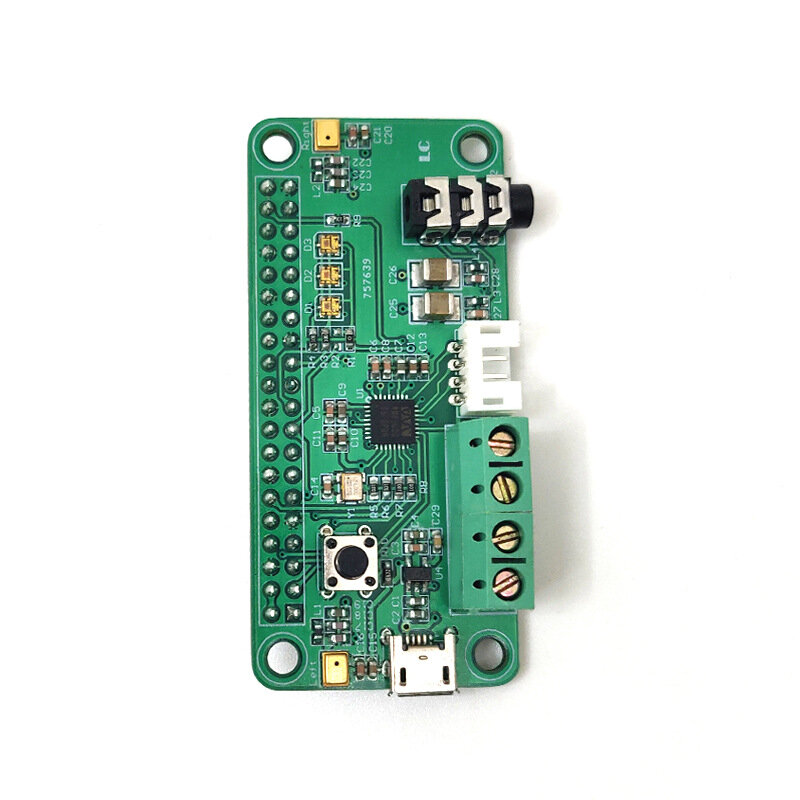

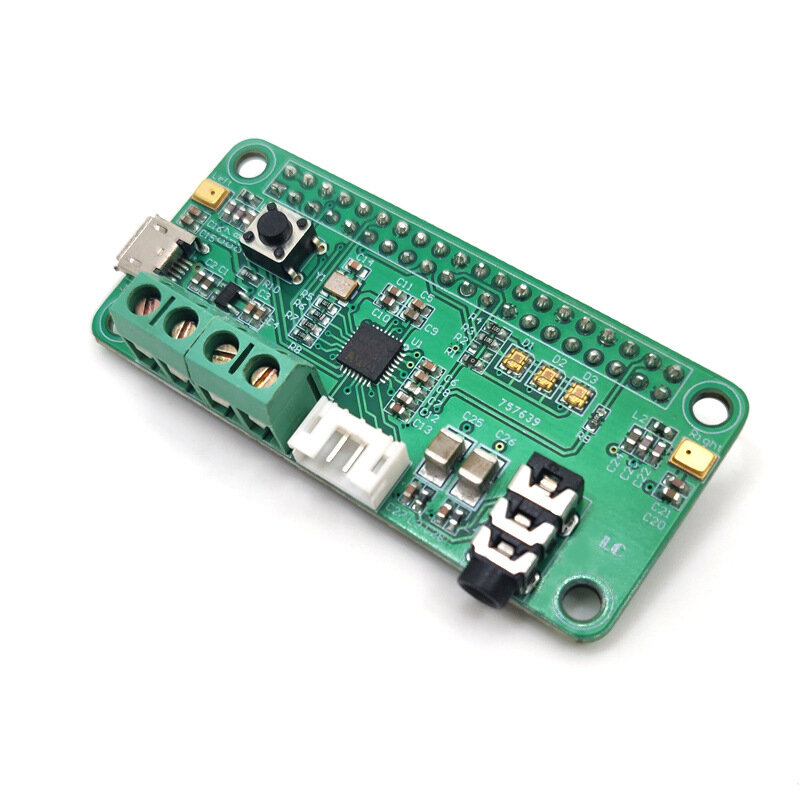

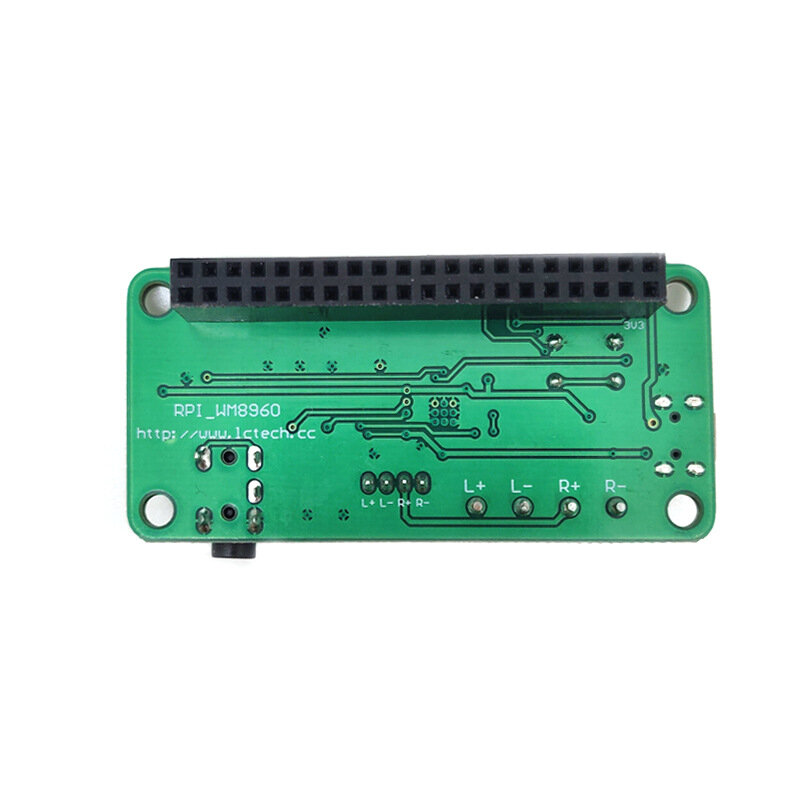

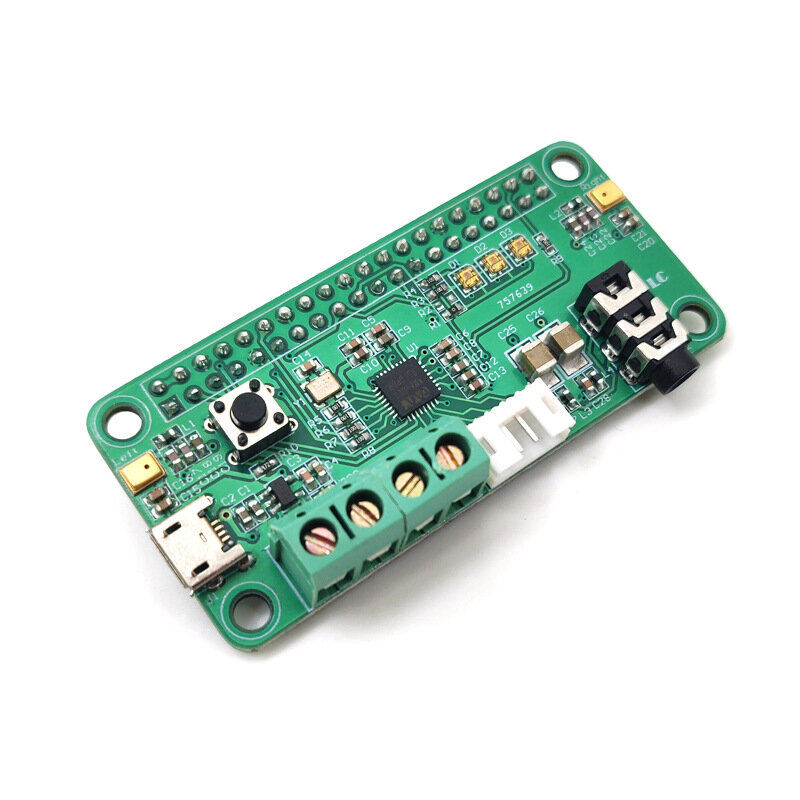

WM8960 Audio Decoding Amplifier Module Intelligent Voice Recognition Dual Microphone for Raspberry Pi Zero/2/3B/3B+/4
28
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296Features:
1. Based on Raspberry PI 40 Pin interface
2. Support Raspberry PI ZERO / ZEROW / 2B / 3B / 3B + / 4 and other development boards.
3. Adopt WM8960 low-power stereo codec chip, which can communicate through I2S interface.
4. 2 high-quality MEMS silicon microphones onboard, can record left and right channels.
5. Onboard standard 3.5MM earphone connection, output power: 40MW (16u03a9 @ 3.3V).
6. Onboard dual channel speaker interface, can directly drive the speaker, output power: 2X1W.
7. Support stereo, 3D surround and other audio output.
8. Onboard 3 programmable APA-102-2020 full-color LEDs.
9. Power supply voltage: 5V.
10. Logicvoltage: 3.3V.
11. Raspberry Pi control interface: I2C.
12. Audio interface: I2S.
13. DAC signal to noise ratio: 98DB, ADC signal to noise ratio: 94dB.
Function:
1. RASPBERRY PI 2 * 20P seat: support RASPBERRY PI ZERO / ZERO W / 2B / 3B / 3B + / 4, etc..
2. MIC_L & MIC_R: left and right MEMS silicon microphone.
3. WM8960: low-power stereo codec chip.
4. Power: When the output is connected to the speaker, this MICRO USB needs to be connected to provide sufficient current.
5. KF301-4P terminal: left and right channel speaker output, power 2X1W.
6. PH2.0-4P seat: left and right channel speaker output, power 2X1W.
7. 3.5MM headphone output: power 40MW (16u03a9@3.3V).
8. RGB LED: 3 APA102 full-color LEDs, connected to the SPI interface of the Raspberry Pi.
9. 6X6MM button: GPI017 connected to the Raspberry Pi.
Package Include:
1 x WM8960 Audio Decoding Module for Respberry Pi
