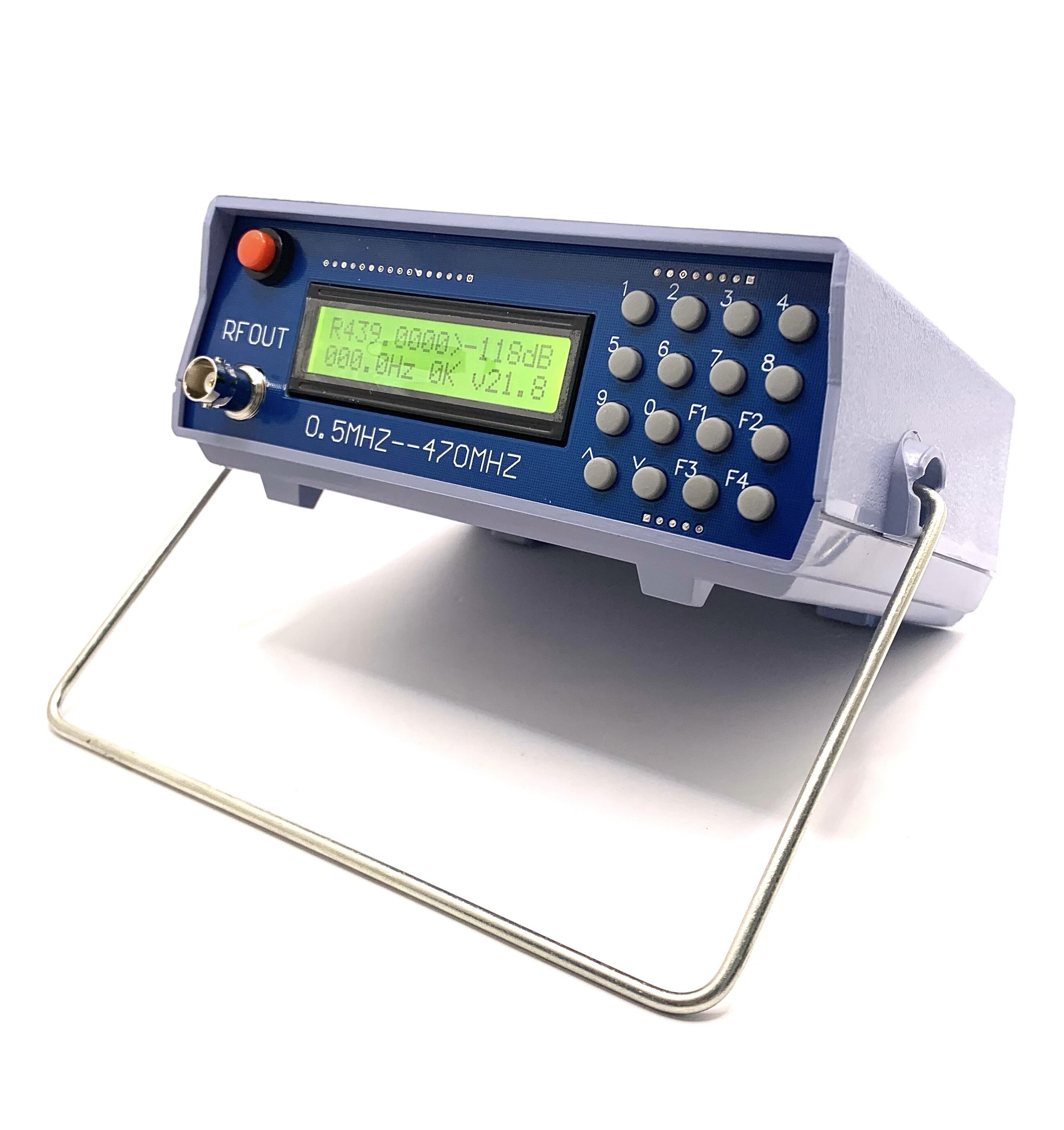

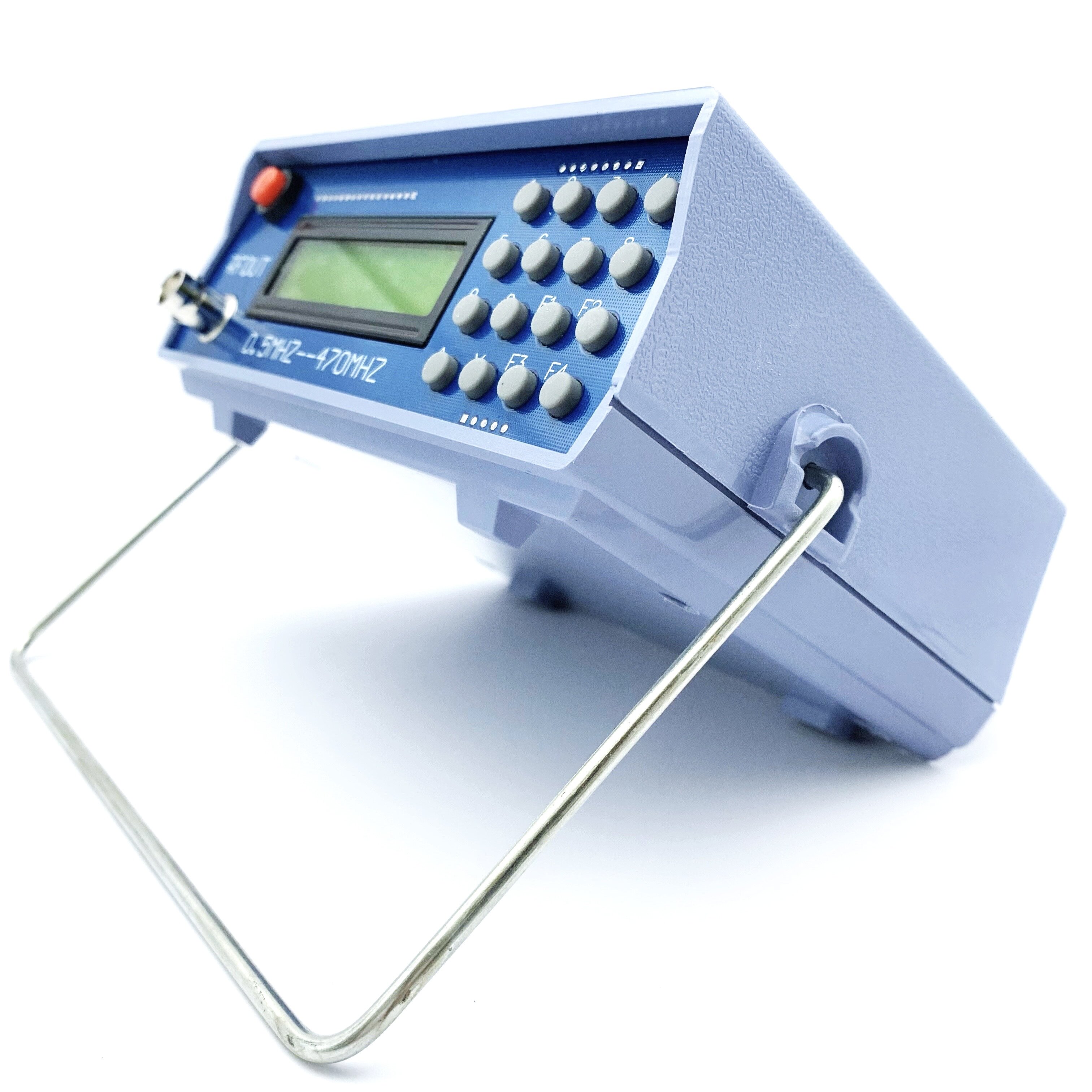

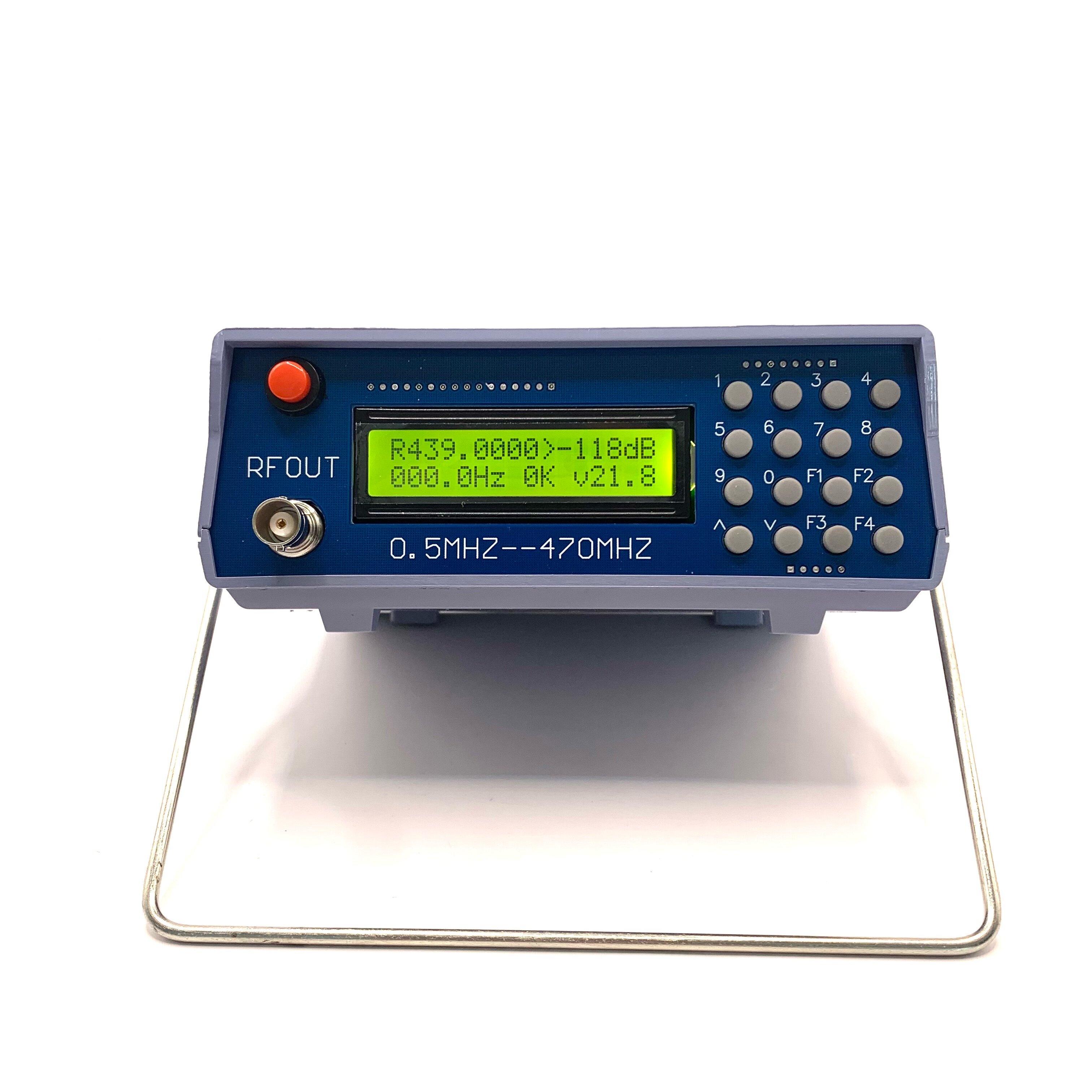

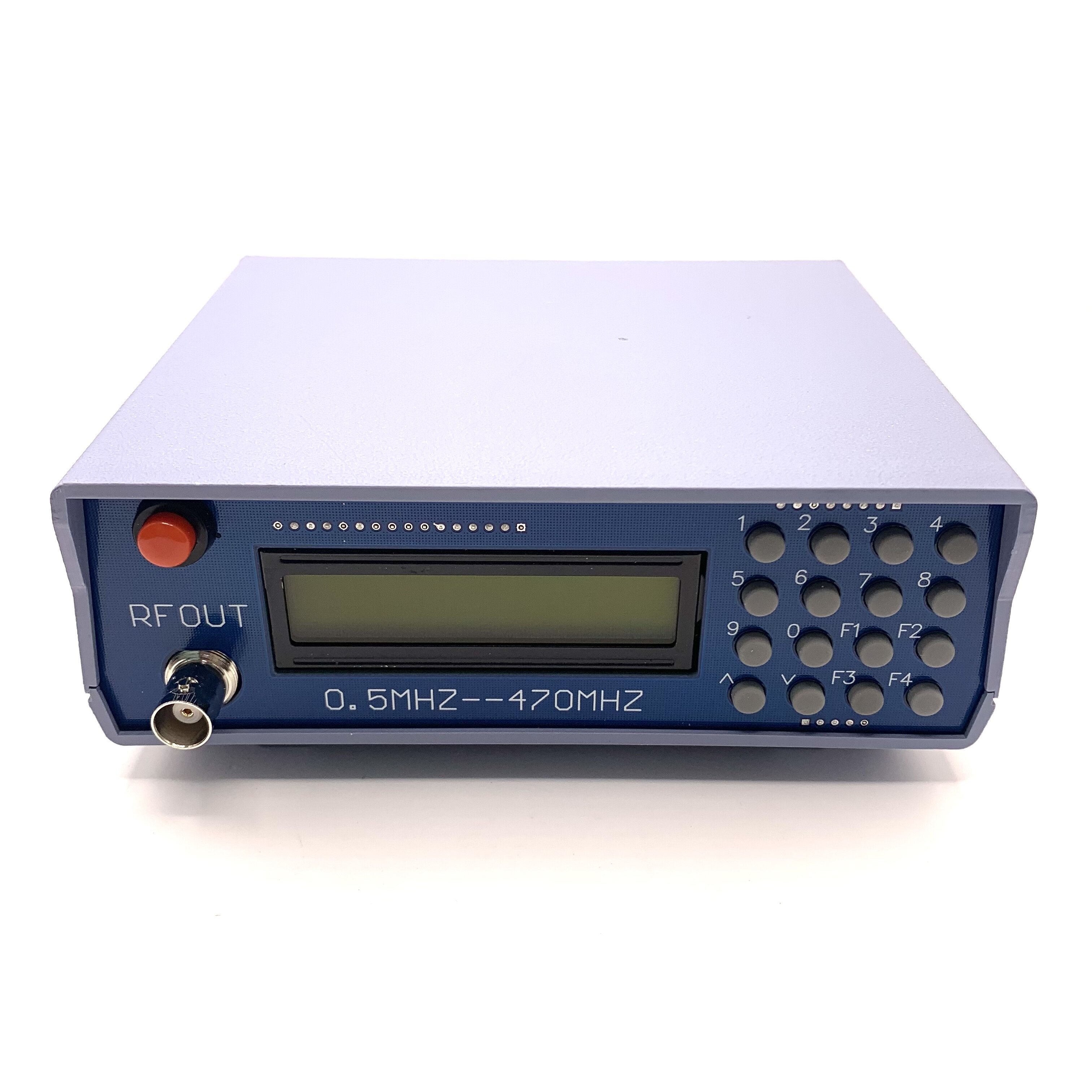

0.5-470MHz RF Signal Generator for FM Walkie-Talkie Sensitivity Test with CTCSS & 800Hz Modulation -120dBm Accuracy
59
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
Specifications:
Material: ABS
Color: blue
Frequency: 0.5MHz-470MHz
Signal strength: -70-132dBm
Maximum Sensitivity: -70dbm
Built-in 800Hz audio modulation
Add the analog digital CTCSS function

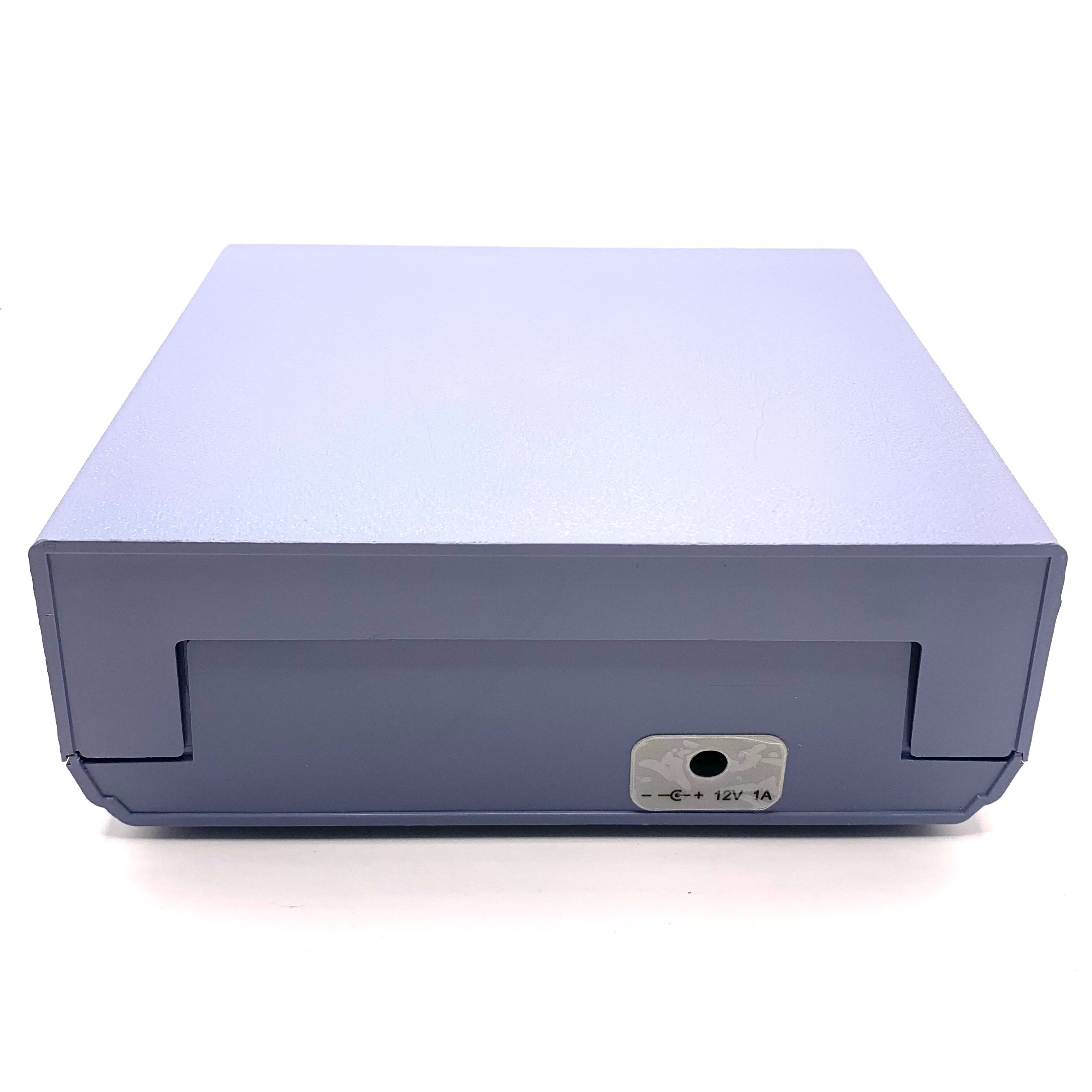

Use 8-12V DC power supply, frequency 7 digits

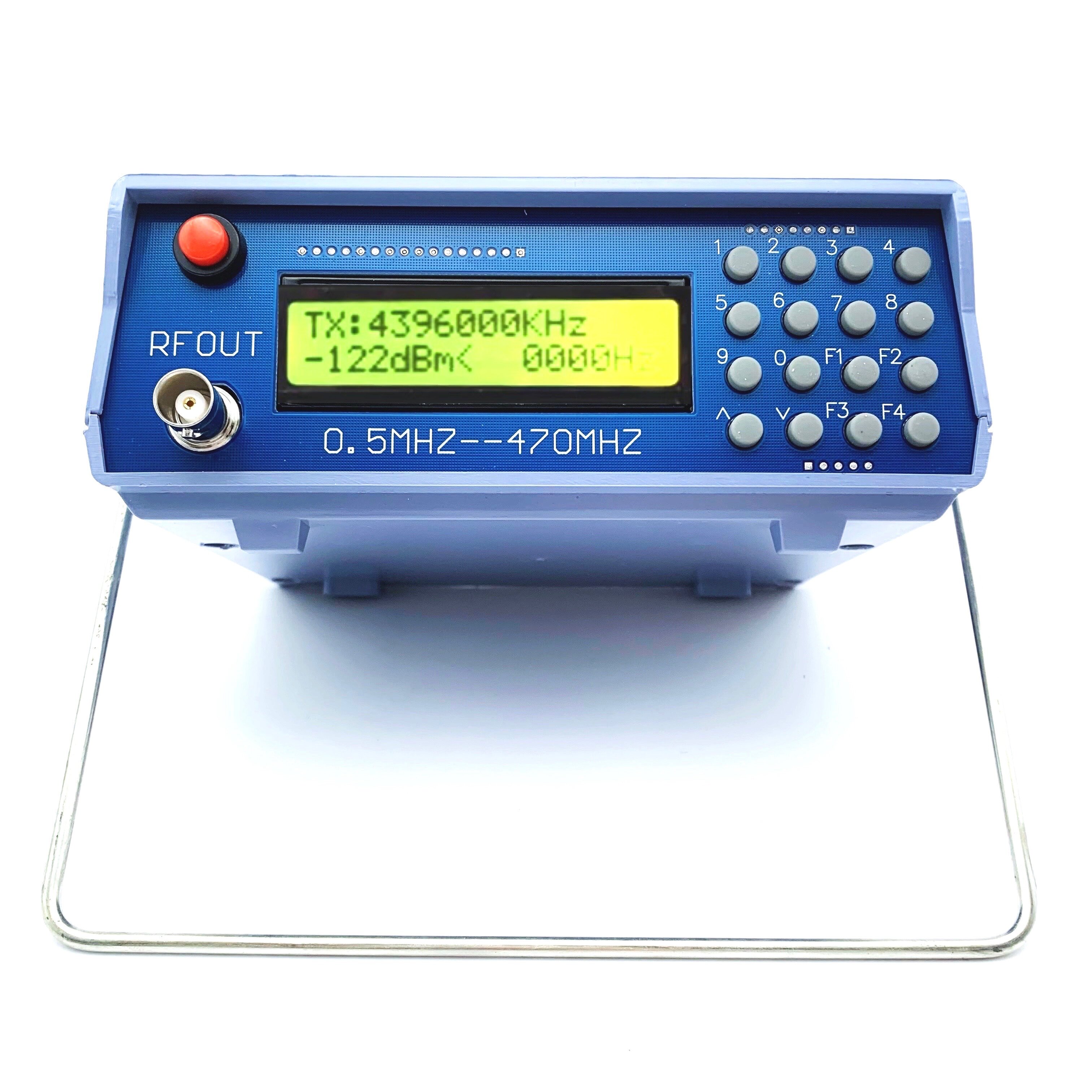

For example: 439.6000MHz shows 4396000KHz
Signal strength -70-132dBm valid, other values are invalid.
Audio modulation is only about 800Hz, other values are invalid.
Item size: 155 * 120 * 63mm / 6.1 * 4.7 * 2.5in
Item weight: 271g / 9.6ounce
Package size: 210 * 160 * 70mm / 8.3 * 6.3 * 2.8in
Package weight: 303g / 10.7ounce
Features:
mso-font-kerning:1.0000pt;">
Suitable for FM walkie-talkie debugging.
Built-in 800Hz audio modulation, with the analog digital CTCSS function.
The unit is DBM. General hand sensitivity is -120DBM to -130DBM.
The greater the sensitivity to a negative number, the higher the sensitivity.
The signal source cannot input power.
It is absolutely forbidden to press the intercom button to transmit when testing. (self-matching power supply 8V-12V power supply polarity is positive and negative)
Test methods:
mso-font-kerning:0.0000pt;">
During the test, the frequency of the signal source input transceiver is first set to -100DB or any value. The intercom has audio output and then reduces the output strength of the source. For example, the -120DB just heard the intercom audio signal but there was noise. The audio signal just hears that the -120DB value of this output is the receiving sensitivity of the radio.
mso-font-kerning:0.0000pt;">
Note:
mso-font-kerning:0.0000pt;">
1. Power cable is not included.
2. Specially designed for testing the sensitivity of your walkie talkie, the signal generator meter is not for testing the sensitivity of FM radios. It features narrow-band FM mode different from that of radios.
mso-font-kerning:0.0000pt;">
Package list:
mso-font-kerning:0.0000pt;">
1
* 0.5MHz-470MHz RF Signal Generator for FM Radio
